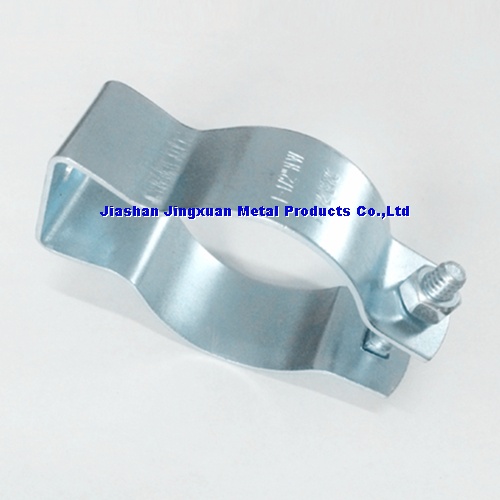

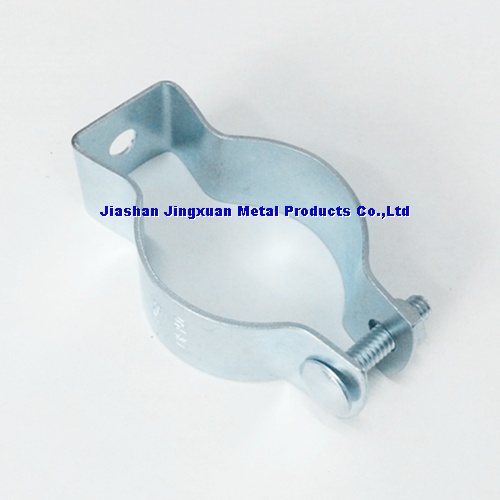

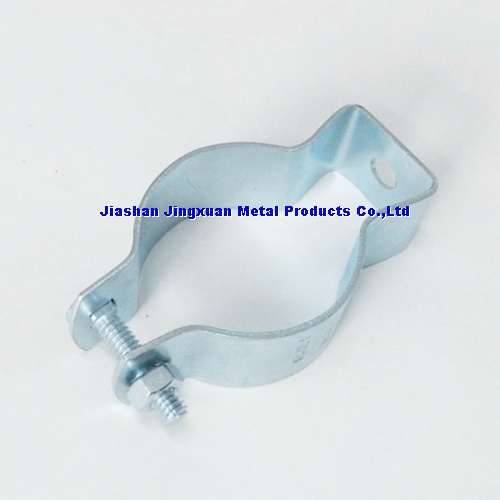

Conduit Hangers

Conduit Hangers Conduit Hangers Conduit Hangers Conduit Hangers
Product name : Conduit Hangers Item : CH
Conduit Hangers
E.M.T Conduit& Rigid Conduit & IMC Conduit
ITEM description Pipe
Size
Dimensions
MIX
In
Dimensions
MIX
mm
Dimensions
MAX
In
Dimensions
MAX
mm
Thickness
mm
Width
mm
CH-050 Conduit Hanger 1/2″ 0.706 17.932 0.840 21.336 1.200 19.000
CH-075 Conduit Hanger 3/4″ 0.922 23.419 1.050 26.670 1.200 19.000
CH-100 Conduit Hanger 1″ 1.163 29.540 1.315 33.401 1.200 22.000
CH-125 Conduit Hanger 1-1/4″ 1.510 38.354 1.660 42.164 1.500 22.000
CH-150 Conduit Hanger 1-1/2″ 1.740 44.196 1.900 48.260 1.500 25.000
CH-200 Conduit Hanger 2″ 2.197 55.804 2.375 60.325 1.500 25.000
CH-250 Conduit Hanger 2-1/2"     2.875 73.025 1.500 30.000
CH-300 Conduit Hanger 3"     3.500 88.900 2.000 30.000
CH-350 Conduit Hanger 3-1/2"     4.000 101.600 2.000 30.000
CH-400 Conduit Hanger 4"     4.500 114.300 2.000 30.000

Conduit clamp,Pipe clamp,EMT pipe clamp,EMT clmap
